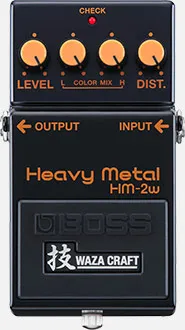

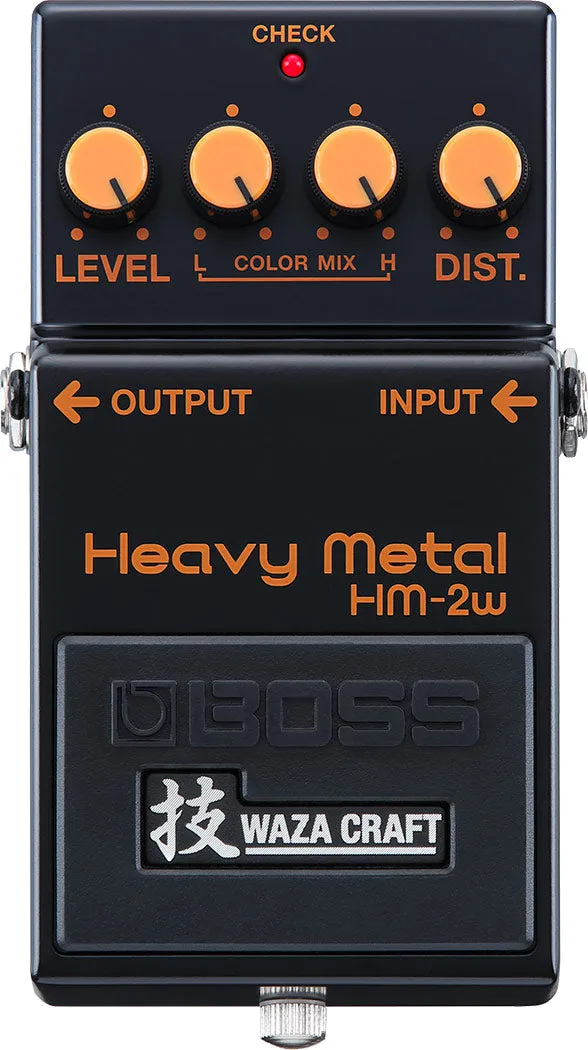

The BOSS HM-2 Heavy Metal is one of the most sought-after vintage pedals in our entire back catalog. Now, we’re pleased to confirm that it’s returning in a special HM-2W Waza Craft edition in the middle of 2021.

Unlike many other iconic BOSS drive pedals, the HM-2 was in production for less than a decade (1983-1991). Following years of fan support, umpteen cult records powered by the pedal’s uniquely aggressive tone, and even an online petition, we’re delighted to announce that the Waza Craft reincarnation of the HM-2 is well underway.

Specifications

Nominal Input Level

-20 dBu

Input Impedance

1 M ohm

Nominal Output Level

-20 dBu

Output Impedance

1 k ohm

Recommended Load Impedance

10 k ohms or greater

Bypass

Buffered bypass

Controls

Pedal switch
Mode switch
DIST. knob
COLOR MIX H knob
COLOR MIX L knob
LEVEL knob

Indicator

CHECK indicator (Used for indication of check battery)

Connectors

INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack

Power Supply

Alkaline battery (9 V, 6LR61 or 6LF22) or Carbon-zinc battery (9 V, 6F22)
AC adaptor (PSA series: sold separately)

Current Draw

30 mA

Expected battery life under continuous use

Alkaline: Approx. 24 hours
Carbon: Approx. 8 hours
*These figures will vary depending on the actual conditions of use.

Accessories

Leaflet "USING THE UNIT SAFELY"
Alkaline battery (9 V, 6LR61 or 6LF22)

Option (sold separately)

AC adaptor: PSA series

Size and Weight

Width

73 mm
2-7/8 inches

Depth

129 mm
5-1/8 inches

Height

59 mm
2-3/8 inches

Weight (including battery)

440 g
1 lb

* 0 dBu = 0.775 Vrms

*The specifications are subject to change without notice.
